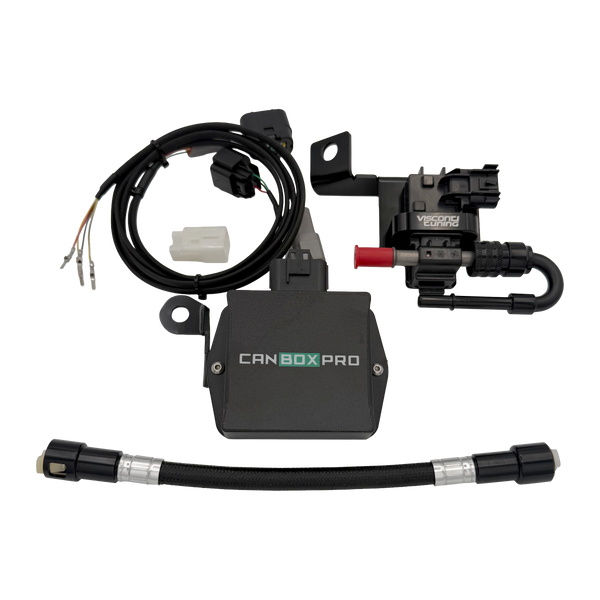

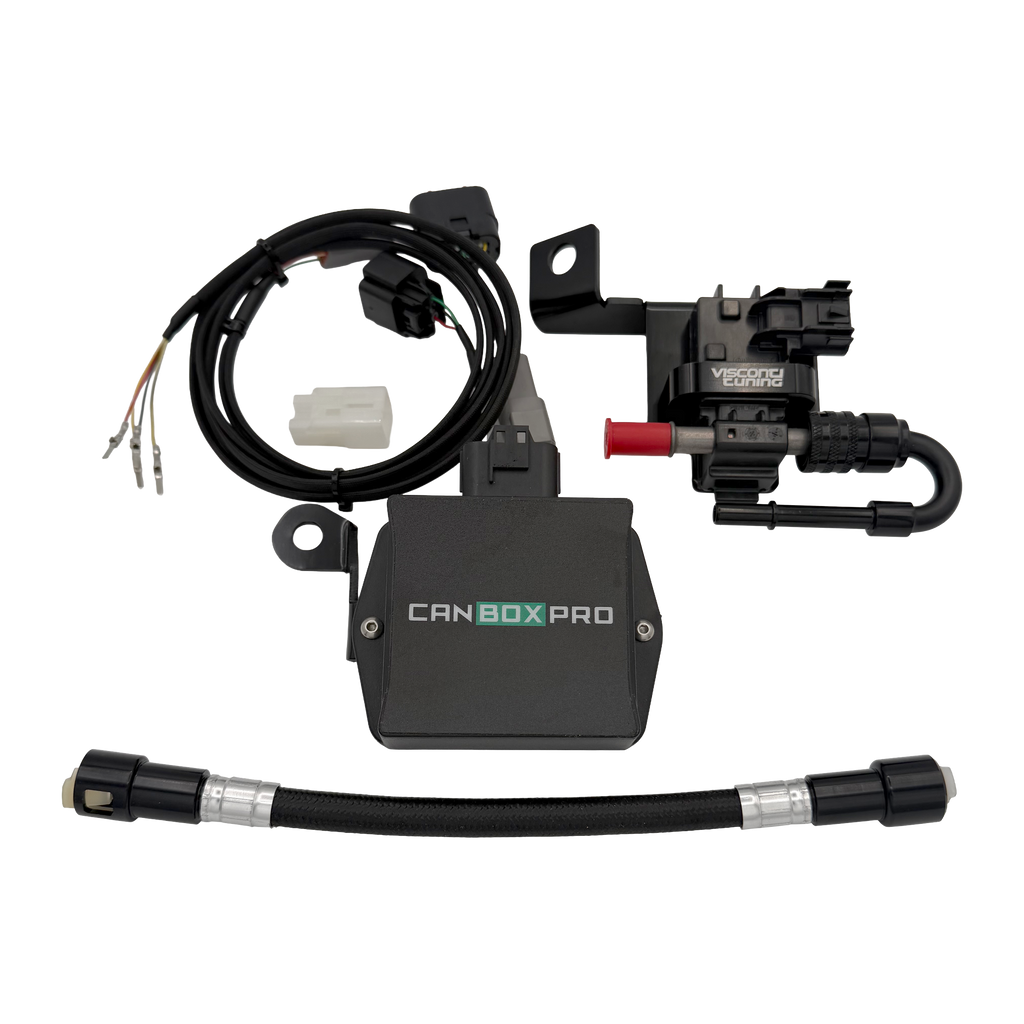

Visconti NexGen GT86 CAN bus flex fuel kit with CANBOXPRO ethanol content analyzer, sensor bracket and PTFE fuel line

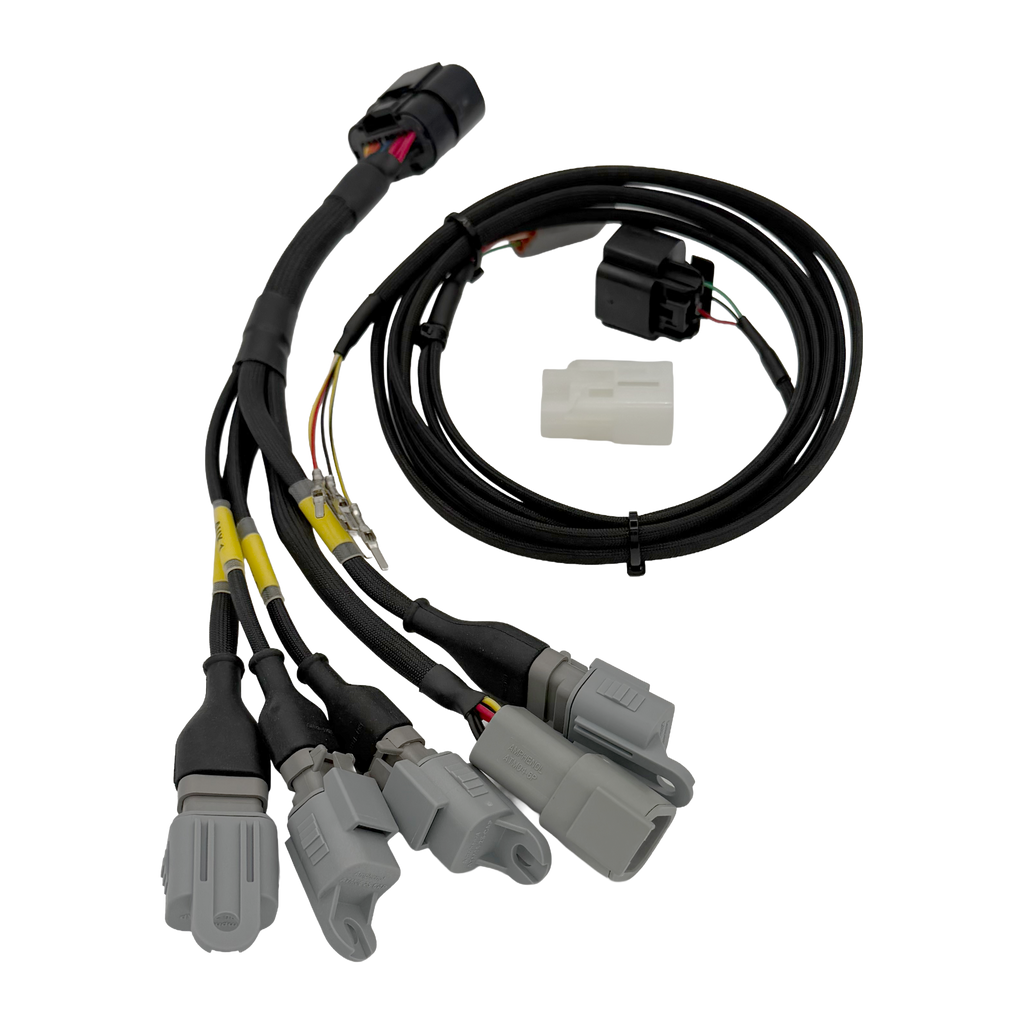

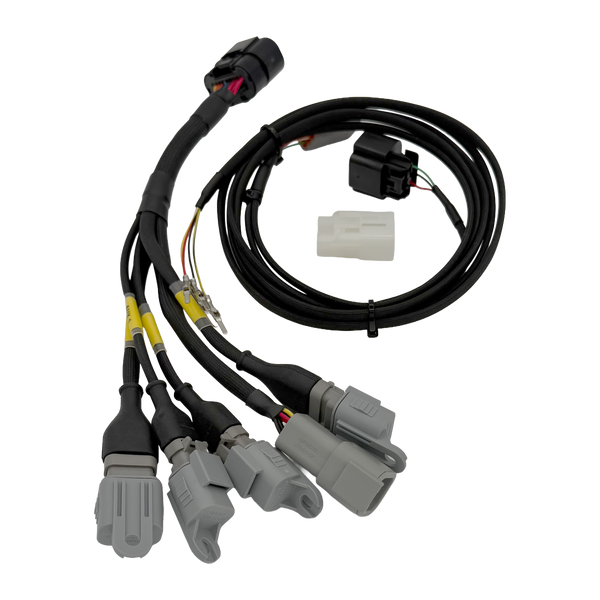

Visconti NexGen GT86 flex fuel harness with add-on aux input and aux output connectors

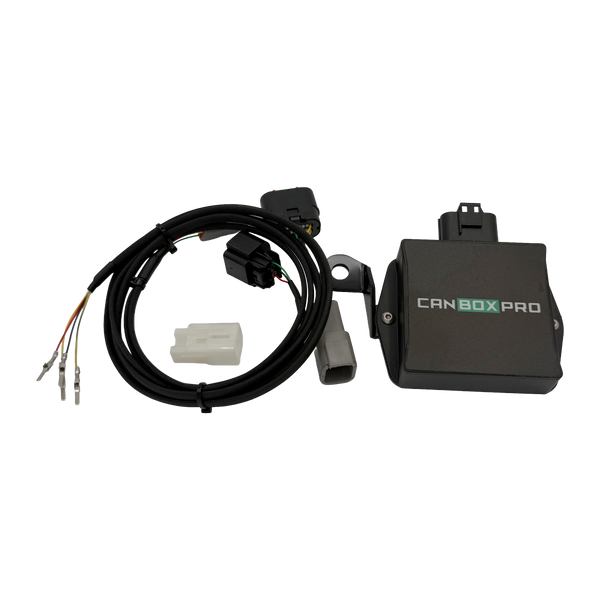

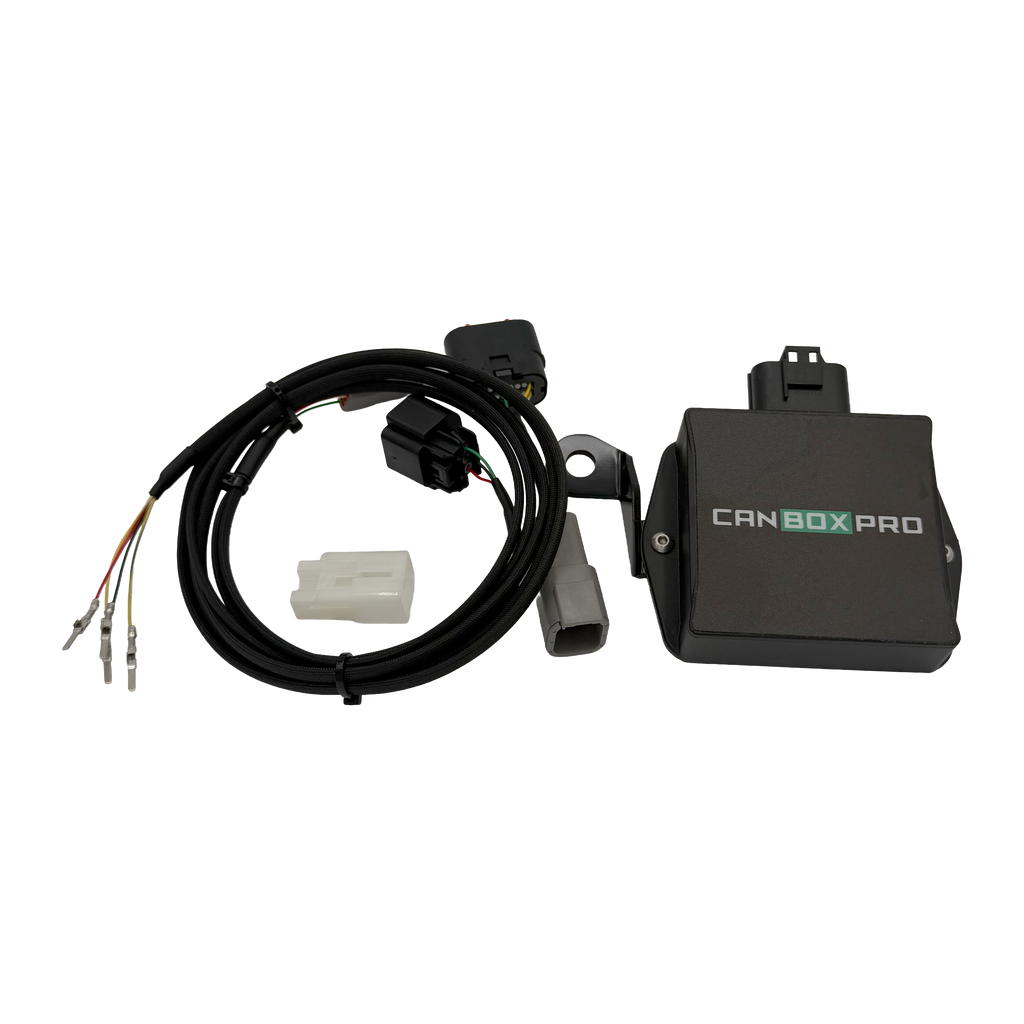

Visconti CANBOXPRO flex fuel controller with plug and play harness for the NexGen GT86 flex fuel kit
Visconti Tuning

NexGen GT86 Flex Fuel Kit - CAN bus

$ 555.00

The Visconti Tuning NexGen Flex Fuel Kit for the Toyota GT86 provides a fully CAN bus integrated ethanol content monitoring system designed to communicate directly with the factory ECU.

What's included with the kit:

  • Zip Ties
  • Visconti CANBOXPRO (Ethanol Content Analyzer)
  • Visconti CANBOXPRO Adapter Harness
  • Visconti GT86 CANBUS Sub harness
  • Visconti Quick Connect Black PTFE Fuel Line
  • GM Ethanol Content Sensor on Billet Bracket with 90 degree quick connect fuel fitting

This is a 100% Plug and Play Flex Fuel Kit. This requires no wires to be cut or spliced. This kit communicates over CANBUS and does not require any codes or sensors to be removed or disabled. No wires need to be passed through the firewall unless you want the optional ethanol content gauge.

For complete functionality this will require an EcuTek Flex Fuel Enabled Tune.

Install takes less than 10 minutes.

We take pride in knowing the name of every individual involved in producing this kit. The harnesses are proudly handmade in the USA with automotive-grade TXL XLPE insulated wire and assembled in an ISO 9001 Certified Facility.
