NexGen Audi RS3 (8V) Flex Fuel Kit - CAN bus
The Visconti Tuning NexGen Audi RS3 (8V) Flex Fuel Kit is the most advanced and user-friendly flex fuel solution available. This fully CAN bus integrated system communicates directly with the factory ECU while keeping all OEM sensors intact, and is supported by all tuning platforms with CAN bus flex fuel integration.
Paired with a flex fuel tune from your tuning platform, the kit supplies the real time ethanol content data your tune needs to adapt automatically to whatever is in your fuel tank. There is no need to switch maps, drain fuel, or plan fill ups around specific blends. Whether you are running pump gas, full ethanol, or anything in between, the tune adjusts seamlessly to deliver optimal performance and safety.
CANBOX is our Bluetooth (BLE) Ethanol Content Analyzer that provides core flex fuel functionality. Ethanol content reads through your tuning platform's datalogger, and the free iOS and Android app adds quick and easy ethanol monitoring, configuration, advanced diagnostics, and a built in E85 blending calculator. Over the air firmware updates keep your kit future proof as new features are released.

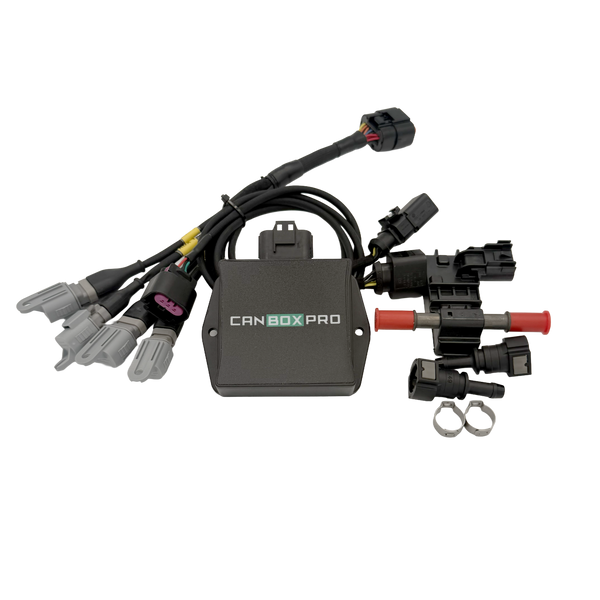

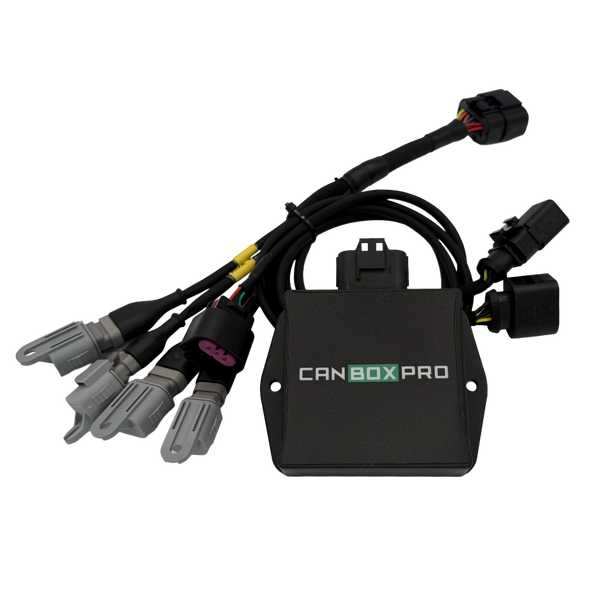

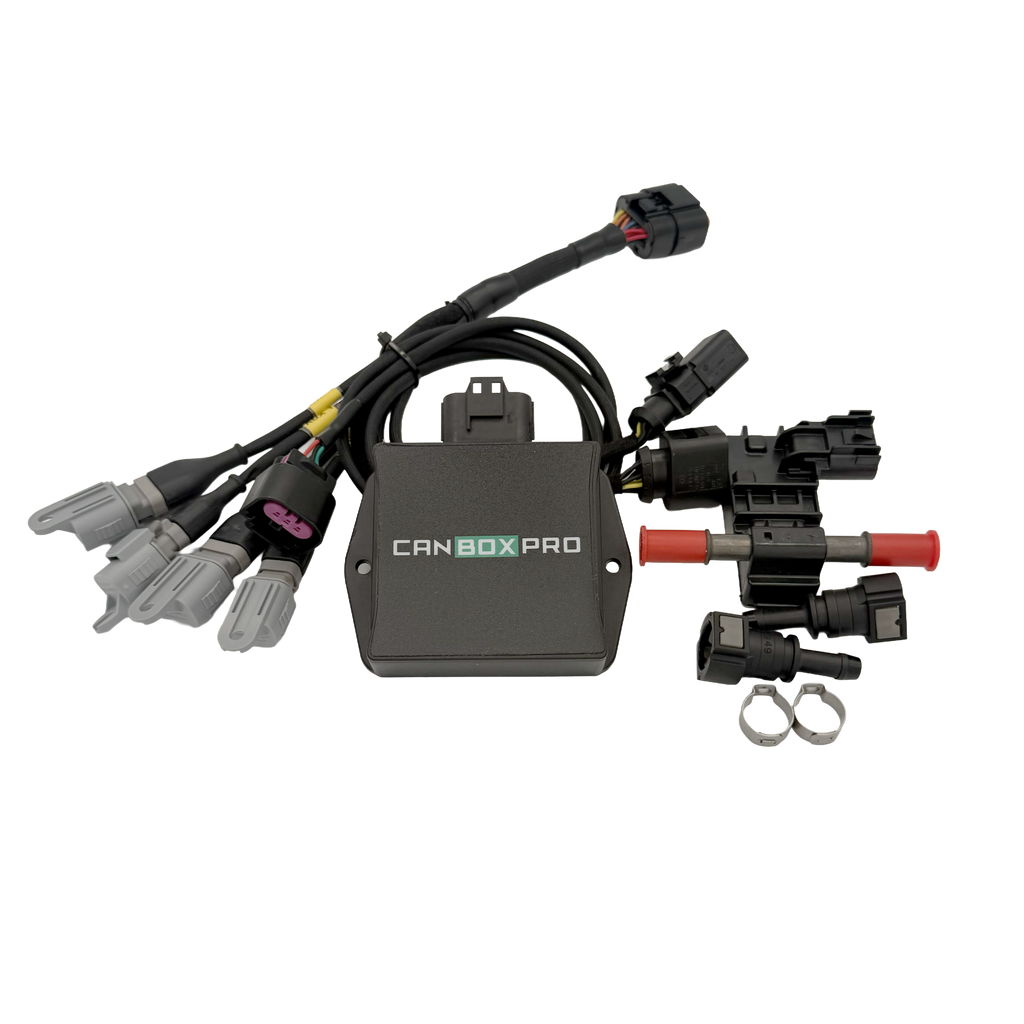

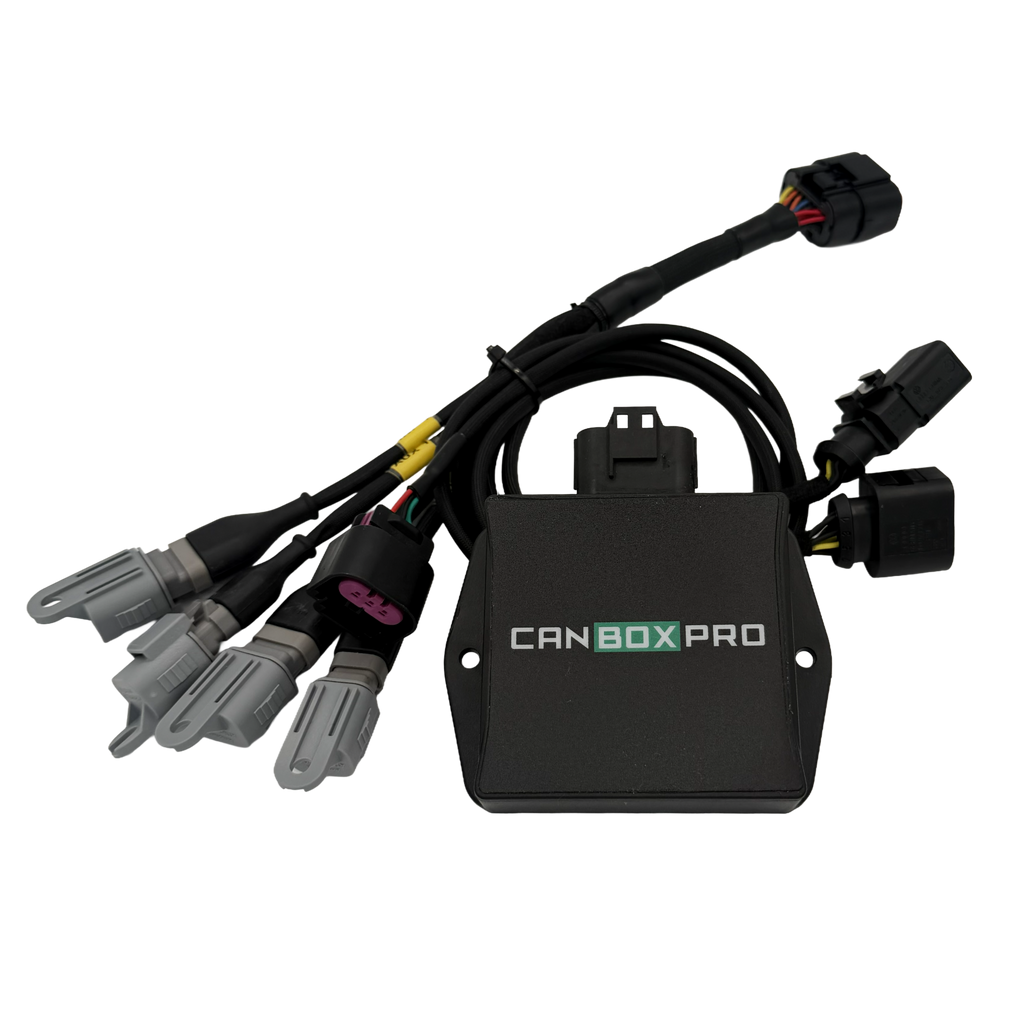

CANBOXPRO adds four configurable I/O channels. These support 0 to 5 volt sensor inputs for features such as fuel pressure, boost pressure, or coolant pressure monitoring, as well as PWM outputs for triggering relays or controlling auxiliary systems such as secondary fuel pumps, meth or nitrous. CANBOXPRO allows additional inputs to be added now or expanded later as your setup evolves.
What's included:

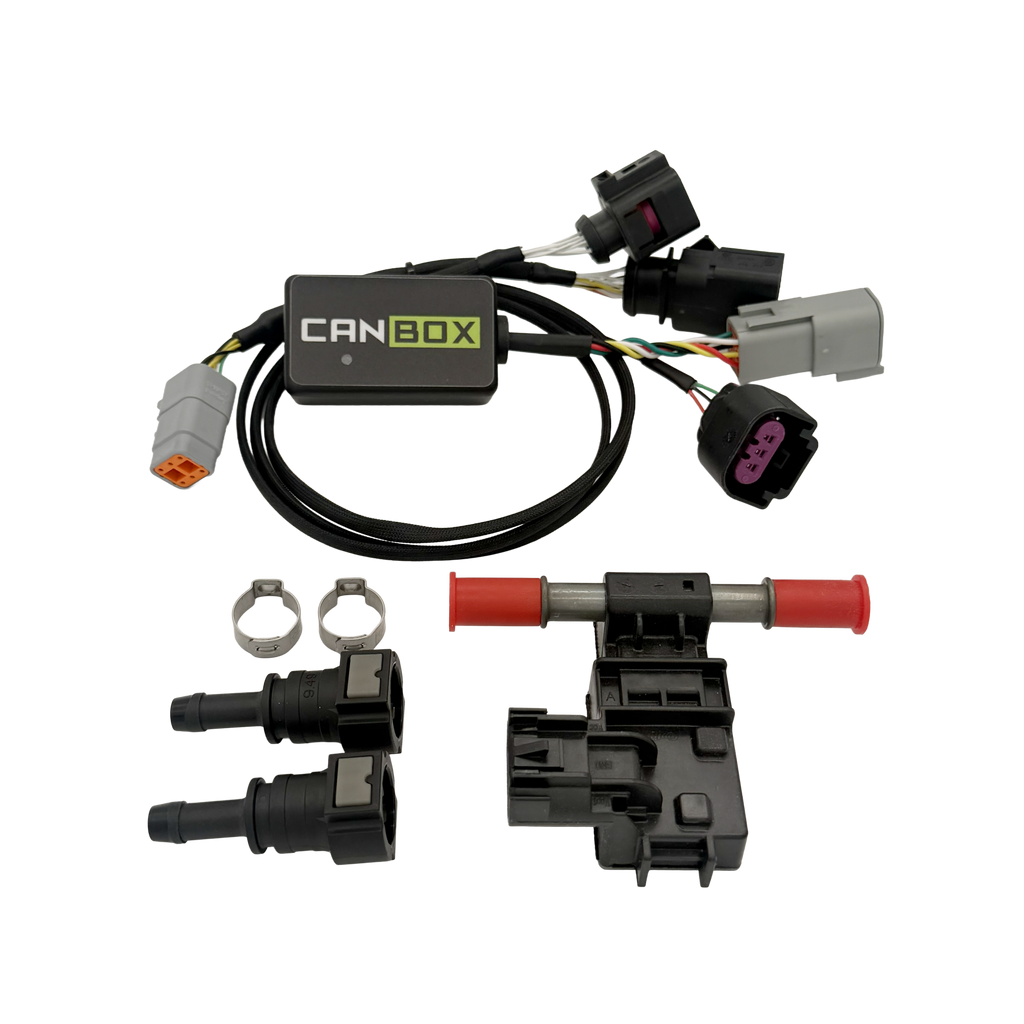

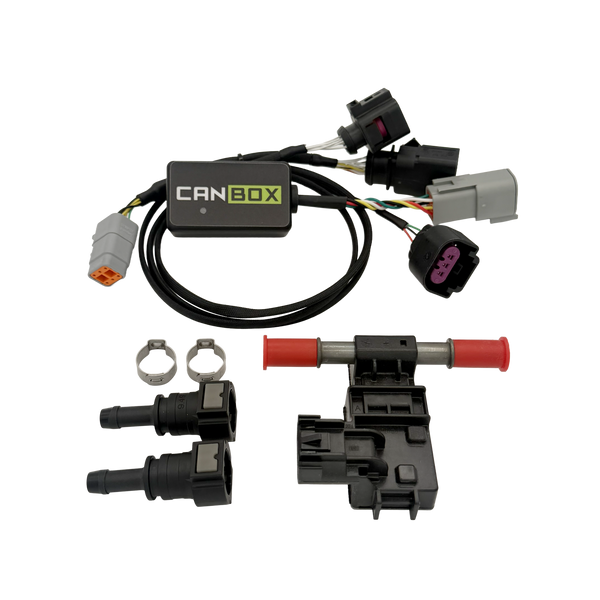

Complete Kit - Fittings & Ethanol Sensor
- Visconti Ethanol Content Analyzer
- Visconti Plug & Play RS3 (8V) Wiring Harness
- Genuine GM Continental Ethanol Content Sensor
- Fuel Line Fittings

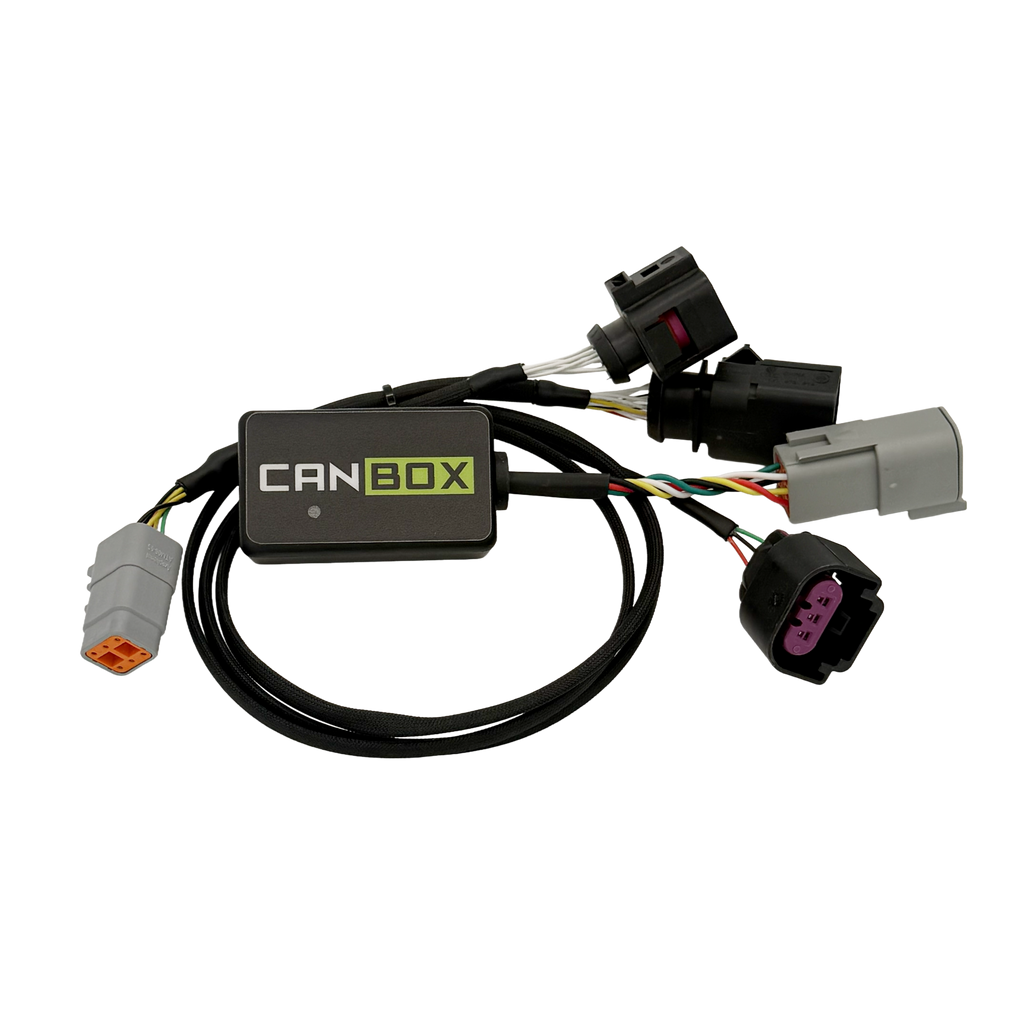

Harness Only
- Visconti Ethanol Content Analyzer
- Visconti Plug & Play RS3 (8V) Wiring Harness
ATTENTION TUNERS:
Our hardware works on all tuning platforms. CANBOXPRO's expandable I/O is designed for EcuTek RaceROM but can be made to work with other platforms, just reach out.
Technical details and development history:
Developed and refined over more than 15 years on the Nissan GTR platform, our kit reflects continuous engineering improvements driven by real world use. We were the first to develop a flex fuel kit that communicated directly with the factory ECU on a vehicle that did not originally include that functionality.
We take pride in knowing the name of every individual involved in producing this kit, which is proudly designed and manufactured in the USA. The harnesses are handmade with automotive-grade TXL XLPE insulated wire and assembled in an ISO Certified Facility.
